The Voraxial® Separator Profile

Non Clogging

The Voraxial® Separator is fitted with a patented non-clog, low-shear rotary assembly designed to create a vortex in the fluids flowing through the separator.

By this action, heavier materials (such as solids) are forced to the outside of the vortex while lighter materials (such as oil) are drawn to form the central core of the vortex, thereby creating separated flow streams.

A specially designed manifold is utilized at the exit of the separation chamber to collect the separated streams.



Pressure, Flow and Energy Excellence:

Separates 3 Components Simultaneously:

Compact Unit – Small Footprint–
Scaleable Models:

Model
Flow Rate
GPM
Diameter
Size
Voraxial® 1000 1-5 1 inch
Voraxial® 2000 20-60 2 inch
Voraxial® 4000 100-500 4 inch
Voraxial® 8000 1000-5000 8 inch














More Benefits:

Multiple Industry Applications:






This video shows the Submersible Voraxial®
used in the Gulf Spill Trials




This video shows the Voraxial® 2000 Skid
performing Produced Water Separation




oil rig using the voraxial separator oil rig close-up of the voraxial separator the voraxial separator turnkey technology on offshore oil rig Small foot print of the Voraxial® Skid



voraxial8000
Voraxial® 8000: 1000-5000gpm


























Products and Applications

Four Model Sizes

Enviro Voraxial Technology manufactures four different models of the Voraxial® Separator that can process volumes from three to 5,000 gallons per minute.  The Voraxial® can be equipped to do 2-way or 3-way separation. Each Voraxial® Separator is custom built to fit each customer's needs. View the models and several applications below or download a pdf brochure here.

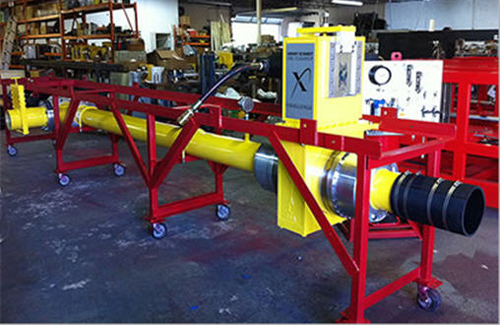

Submersible Voraxial - Side View of the 8000 built for the Wendy Schmidt Oil Spill Cleanup XChallenge
The Voraxial® 8000: 1000-5000 GPM

MODEL 8000: The Voraxial® 8000 separates solids and oil from water at a rate of up to 170,000 barrels a day. The uniqueness of the Voraxial® Separator is its ability to separate contaminants, such as oil and sand, from large volumes of liquids and without any pressure drop, enabling it to be utilized in many different applications, both offshore and onshore.

~~~~~~~~~~~~~



voraxial 4000 separates large volumes of liquids solids and gas
Custom Voraxial® Skid

APPLICATION: The Voraxial® (above) can be easily mated to existing pipeline or equipment, supplied within a complete turnkey solution, or retrofitted into existing water treatment systems to improve the separation efficiency and reduce wastewater costs.

Operators will experience immediate savings in acquisition, installation, operation and maintenance costs.

The Voraxial® provides consistent separation without requiring any adjustments if the inlet oil or sand concentration and flow rate fluctuates.  The standard Voraxial® is rated for 250psi and 250F but it can also be built to withstand more pressure or higher temperatures should the application require.

~~~~~~~~~~~~~





The Voraxial® 4000 Separator on the right processes between 4,000 to 17,000 barrels per day
Voraxia®l 4000: 100-500 GPM

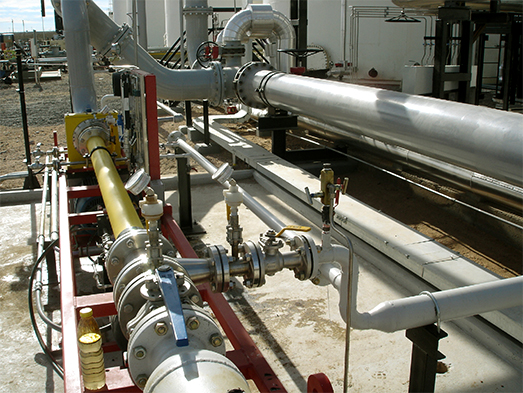

MODEL 4000: The Voraxial® 4000 Separator (above) separates solids and oil from water at a rate of up to 17,000 barrels per day.  The Voraxial® is installed via a flange connection within the customers' existing pipeline.  The fluid pressure is approximately 20-35psi.

~~~~~~~~~~~~~

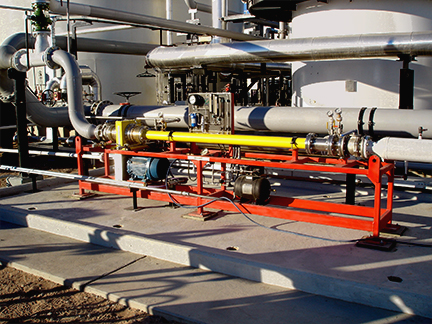

The Voraxial® 4000 Separator on the right processes between 4,000 to 17,000 barrels per day as a pretreatment

APPLICATION: The Voraxial® 4000 Separator (left) processes between 4,000 to 17,000 barrels per day as a pretreatment to provide a consistent influent stream to the IGF.

By installing the Voraxial® as a pretreatment, the customer increased separation efficiency
from: 72% without the Voraxial®
to: 93% separation with the Voraxial®.

By installing the Voraxial® as a pretreatment, the customer increased separation efficiency from 72% without the Voraxial® to 93% separation with the Voraxial®.









~~~~~~~~~~~~~

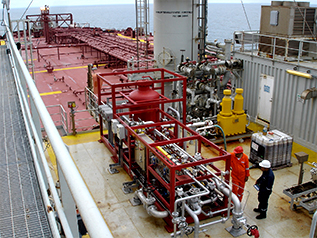

Voraxial compact turnkey solution installed on an offshore FPSO Side view oil water separator for produced water is a compact turnkey solution installed on an offshore FPSO

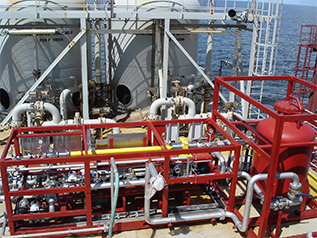

APPLICATION: The above Voraxial®, combined with other equipment, is a compact turnkey solution installed on an offshore FPSO.
  • Is separating oil and sand at a rate of up to 15,000 barrels per day
  • A discharge of <10ppm and without any pressure loss.
  • Fluid pressure is approximately 150psi.

The customer cannot afford to lose any fluid pressure in completing the separation.

~~~~~~~~~~~~~

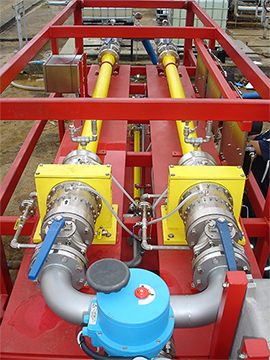

a customized system that includes three Voraxial® Separators working in parallel and in series side view: a complete turnkey system that includes three Voraxial® Separators working in parallel and in series, separating sand from water at rates of up to 30,000 barrels per day. The Voraxial® system is installed via hose connection


APPLICATION: Two views of a complete turnkey system that includes three Voraxial® Separators working in parallel and in series, separating sand from water at rates of up to 30,000 barrels per day.  The Voraxial® system is installed via hose connection to the customers existing system.  The fluid pressure is approximately 15psi.

Download a pdf of all of the above systems.

~~~~~~~~~~~~~



voraxial 2000 skid

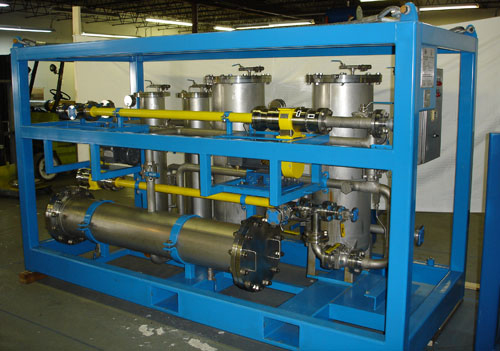

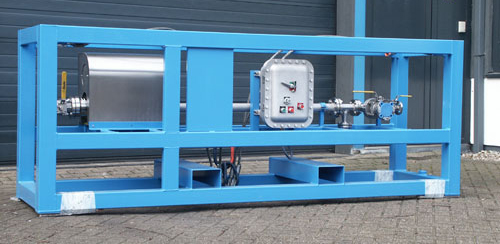

Voraxial® 2000 Separator Skid

voraxial 2000
Voraxial® 2000: 20-60gpm

The Voraxial 2000:

  • Nominal Flow of 20 to 60 GPM
  • Design Pressure/Temperature 250 psi/250F
  • Construction Materials 316 SS
  • 3 Hp, 3 Phase, 60 Hz, Explosion-proof Motors
  • Design Rotational Speed 6000 RPM
  • Maximum "G" Force of 1000
  • Skid Produced Water Test Results to Meet Customers Discharge Requirements
